Bell & Gossett 1BL003LF Series PL-36B Bronze Circulator Pump, 1/6 HP, 115V
In our catalog

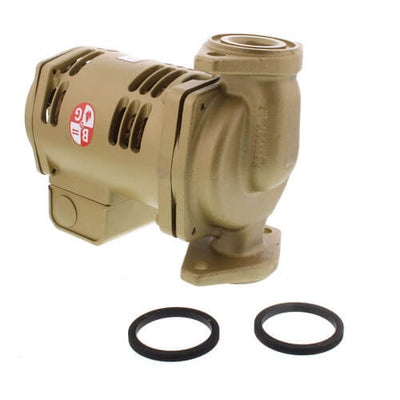

Bell & Gossett 1BL003LF Series PL-36B Bronze Circulator Pump, 1/6 HP, 115V

Bell & Gossett · MPN 1BL003LF

No live price for this item right now — our vendor scan came back empty. Request a bulk or job quote below and our team will price it for you.

Series PL close-coupled lead-free bronze booster pump for potable domestic water, hydronic, radiant, and geothermal systems. Permanently lubricated 1/6 HP dry-motor, 3300 RPM, 115V single-phase, 2.1A, 60 Hz with thermal overload protection. XL-11 precision-crafted bearing system; carbon on silicon carbide mechanical seal on stainless steel shaft sleeve; 30% glass-filled Noryl impeller. Maximum working pressure 150 psi; maximum operating temperature 225F. Two-bolt flanged connections (companion flanges sold separately) for 3/4 in through 1-1/2 in piping.

Model1BL003LF
SeriesPL-36B (Series PL)
ProductBronze Booster/Circulator Pump
Body MaterialLead-free bronze
Motor1/6 HP, 3300 RPM, 115V, single phase, 60 Hz
Amperage2.1 A
Motor TypeOpen drip-proof permanent split capacitor, single speed
Motor ProtectionThermal overload protection
Impeller30% glass-filled Noryl, 3-1/16 in OD
Mechanical SealCarbon on silicon carbide, EPDM elastomers, stainless steel shaft sleeve
Bearing SystemXL-11 precision-crafted, permanently oil lubricated
Max Working Pressure150 psi (10.3 bar)

Request a bulk or job quote for this item

We don’t have a live online price for this item right now. Tell us how many you need and our team will quote it — bulk and job-lot pricing included.
