Honeywell

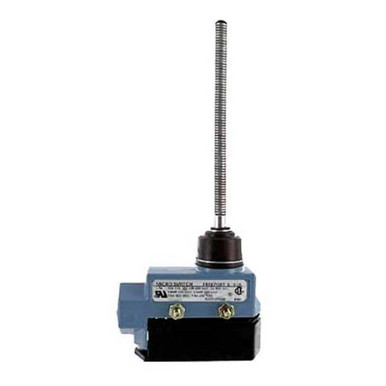

Honeywell BZE6-2RN18 MICRO SWITCH Medium-Duty Enclosed Limit Switch, Wobble Coil Spring, SPDT, 15A, IP66

Mfr #: BZE6-2RN18BB #: honeywell-bze6-2rn18-honeywell-bze6-2rn18-micro-switch-medium-duty-enc
Last verified Oct 2, 2026 — price check expired
Price check expired

Prices move — we won't sell you this item on an old check. Run a fresh check and we'll verify the current price first.

Check current price
✓Delivery: Standard shipping
✓Returns: Standard returns
⇄ Vendor prices
VendorPriceShipping
SIM Supply$196.05Free
Prices observed across vendors — click a vendor’s name to verify the price on their own page before ordering.

Reviews

Loading reviews…

🗎 Product description from the manufacturer spec sheet

Honeywell BZE6-2RN18 is a MICRO SWITCH BZE6 series medium-duty enclosed limit switch with a wobble head and coil spring actuator. It is a compact, side-mount switch with SPDT (1 CO) contacts rated 15 A, boot seal, IP66 sealing, and a zinc die-cast case, designed for indoor and outdoor industrial applications where space is limited.

▦ Specifications spec-checked before it ships

Manufacturer

Manufacturer Part Number
BZE6-2RN18
Manufacturer
HONEYWELL

Number

Number of Poles
1
Number of Positions
2

More specifications

Mounting Type
Side Mount
Series
BZE6 Series
IP Rating
IP66
Special Features
Boot Seal
Voltage Rating
125 V
Operating Temperature
-32 to 71 °C
Actuator Type
Coil Spring
Type
Limit
Standards
Ul Recognized, CSA Certified
Termination
screw
Current Rating
15 A
Head Type
Wobble Head
Family Name
E6/V6 Series
Case Material
Zinc Die Cast
Contact Form
1 CO
⌗ Cross-references every known SKU, MFR & MPN
MPNBZE6-2RN18
SKUSIM Supply # ZO-G4323225
