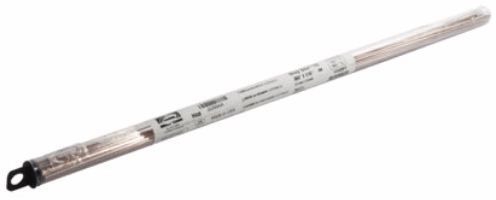

Harris Stay-Silv 15 Phos-Copper Brazing Alloy - 15% Silver, .050" x 1/8" x 20" Flat Rods, 28-Stick 1-lb Tube
Mfr #: 15620F1BB #: harris-harris-products-group-a-lincoln-electric-company-15620f1-harUPC: 684032014886
Scanned vendors: 7Last verified Oct 1, 2026 — price check expired
Price check expired
Prices move — we won't sell you this item on an old check. Run a fresh check and we'll verify the current price first.
Check current price✓Delivery: 2–4 business days, tracked to your door or dock
✓Returns: 30-day returns — terms always match the source we bought from.
⇄ Vendor prices
| Vendor | Price | Shipping |
|---|---|---|
| IndustrialZoneIn stock | $324.00 | Page shows 'Free Shipping on Orders Above $300' badge; other |
| FergusonIn stock | $382.81 | Shipping Available - Available for immediate shipment; picku |
| WeldstarIn stock | $431.58 | not stated |
| PlumbingSupplyAndMoreIn stock | $439.62 | not stated |
| Red Ball OxygenIn stock | $594.25 | not stated |
Prices observed across vendors — click a vendor’s name to verify the price on their own page before ordering.
Reviews
Loading reviews…
🗎 Product description from the manufacturer spec sheet
Stay-Silv 15 phos-copper brazing alloy filler metal (15% silver) - the industry standard for air conditioning/refrigeration copper brazing. Bare flat rods .050" x 1/8" x 20", self-fluxing on copper-to-copper joints; wide melting range fills loose connections and caps/builds up finished joints. AWS A5.8 Class BCuP-5. 28 sticks per 1-lb tube.
▦ Specifications spec-checked before it ships
- Chemical Composition %
- Silver 14.5 - 15.5 | Phosphorus 4.8 - 5.2 | Copper Remainder | Other (Total) 0.15
- Typical Physical Properties
- Solidus 1190 F (643 C) | Liquidus 1475 F (802 C) | Density 0.305 (lb/cu.in) | Electrical conductivity 9.9 (% IACS) | Electrical resistivity 17.4 (microhm/cm)
- Specification Compliance
- AWS A5.8 BCuP-5, ASME Section IIC SFA 5.8 BCuP-5, QQ-B-654A BCuP-5, ISO17672 CuP 284
- Recommended Flux
- No flux is required for copper brazing. For brazing brass or copper to brass use Stay-Silv white flux.
- Available Forms
- Standard wire diameters in coils, rods, spools, and rings, strip, and shims.
- Description
- Stay Silv 15 is a frequent choice for copper brazing. It has a wide melting range that allows operators to fill loose connections and 'cap', or build up, around the finished joint. When heated above its liquidus, however, it will penetrate tight connections.
- AWS Classification
- BCuP-5
- Fluidity Rating
- 3
- Composition
- Silver - 15%, Phosphorus - 5%, Copper - 80%
- Solidus
- 1190 F (643 C)
- Liquidus
- Tech sheet BH Rev. 5.13: 1475 F (802 C); Harris US instruction manual and catalog: 1480 F (804 C) - recorded both verbatim; discrepancy noted
- Rod Form
- Flat rods .050" x 1/8" x 20"
- Catalog Selection Chart (Sid Harvey, verbatim)
- STAY-SILV 15 | BCuP-5 | Ag 15, Cu 80.0, P 5.0P | Solidus 1190 F / 643 C | Liquidus 1480 F / 804 C | Fluidity Rating 3
⌗ Cross-references every known SKU, MFR & MPN
MPN15620F1
UPC684032014886
SKUIndustrialZone # 15620F1
SKUFerguson # H15620F1 (Ferguson Item #4514011)
SKUWeldstar # SILBCUP5-1/8 (Catalog 15620F1)
SKUPlumbingSupplyAndMore # 539
SKURed Ball Oxygen # HAR15620F (Catalog Number 15620F)
